BMXAMI0410 Schneider Relay Module

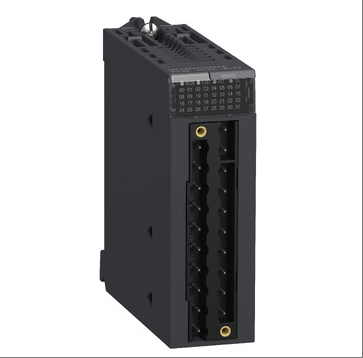

BMXAMI0410 is an advanced analog input module from Schneider Electric's Modicon M340 series. It has four 16 bit isolated input channels and is compatible with voltage (± 10V, ± 5V, 0-10V, 0-5V, 1-5V) and current (0-20mA, 4-20mA, ± 20mA) signal inputs. The module's built-in read resistor is used to convert current to voltage; This module supports 24V DC power supply, has first-order digital filtering function to reduce signal noise, and is equipped with a 20 pin detachable terminal block connection port. It supports crimping, screw or spring terminal blocks, as well as flying wire or Telefast connection methods; The isolation voltage between channels is up to 300V DC, and the isolation voltage between channels and ground/bus is up to 1400V DC. The measurement error is 0.15% of the full range at 4-20mA, 0-20mA, and ± 20mA inputs, and 0.075% at 1-5V and 0-5V inputs. The reading cycle is 1ms (base value)+1ms x number of channels (nominal 5ms for 4 channels), with a power consumption of 2.5W. The working temperature range is -25 ℃ to 70 ℃, and the storage temperature range is -40 ℃ to 85 ℃. It is suitable for industrial automation scenarios such as CNC machinery, metallurgy, oil and gas, and can be used in conjunction with sensors or transmitters to achieve process monitoring, measurement, and control functions.
Technical specifcations for BMXAMI0410
Input channel and signal type:
Number of channels: 4 analog input channels.
Input signal type: Supports voltage signals (± 10V, ± 5V, 0-10V, 0-5V, 1-5V) and current signals (± 20mA, 0-20mA, 4-20mA), with specific ranges to be selected according to configuration.
Analog/Digital Conversion:
Conversion resolution: 24 bit AD conversion, providing 16 bit analog input resolution.
Reading cycle and filtering function:
Read cycle: The fast read cycle is 1ms+1ms multiplied by the number of channels used, and the nominal read cycle for 4 channels is 5ms.
Filtering function: It has first-order digital filtering function, which can reduce signal noise and interference.
Isolation characteristics:
Isolation voltage between channels: 300V DC.
Isolation voltage between channel and ground, channel and bus: 1400V DC.
Measurement error:
At 4-20mA, 0-20mA, and ± 20mA inputs, the measurement error is 0.15% of the full range.
At 1-5V and 0-5V inputs, the measurement error is 0.075% of the full range.
power waste:
Power consumption: 2.5W.
Environmental adaptability:
Working temperature range: -25 ℃ to 70 ℃.
Storage temperature range: -40 ℃ to 85 ℃.
Environmental humidity: 5% to 95% RH, no condensation.
Vibration: 0.5g rms, 5 to 500Hz.
Impact: 10g, 11ms.
Electrical parameters:
Power supply voltage: 24V DC (also known as 12-48V DC, but usually 24V DC is the main voltage).
Overload capacity: The input can withstand ± 30V voltage overload, and the current overload capacity is ± 90mA.
