LXM32SD18N4 Schneider Motion Servo Drive, Lexium 32, 6A, Three Phase

Schneider LXM32SD18N4 Motion Servo Drive, Lexium 32, 6A, Three Phase :

The LXM32SD18N4 is a three-phase motion servo drive from Schneider Electric’s Lexium 32 series, designed for high-precision industrial automation applications. It operates with a rated power of 0.7 kW (at 230 V, 8 kHz) and supports a voltage range of 200–240 V (±15%) or 380–480 V (±15%), making it adaptable to global power standards. The drive features an integrated EMC filter, reducing electromagnetic interference, and supports switching frequencies up to 8 kHz for smooth motor control. Its compact "book-style" design (dimensions: 68 mm × 237 mm × 270 mm) facilitates space-efficient installation in control cabinets.

Technical Specifications:

Power & Voltage:

Rated power: 0.7 kW (230 V, 8 kHz); 1.2 kW (230 V); 1.8 kW (400 V).

Continuous output current: 3 A (8 kHz); peak current: 12 A (3s).

Voltage limits: 170–264 V (low range); 323–528 V (high range).

Performance:

Speed response frequency: 10 Hz (optimized for dynamic applications).

Supports motor speeds up to 8,000 rpm (depending on motor type).

Electrical & Environmental:

Supply frequency: 50/60 Hz ±5%; network frequency: 47.5–63 Hz.

Operating temperature: 0–50°C; storage temperature: -25–70°C.

Humidity tolerance: -20–50% (non-condensing).

Connectivity & Safety:

Single-strand IEC cable connection (3 mm²/AWG 12).

Electrical isolation between power and control circuits.

Overvoltage category III; leakage current: 30 mA.

Certifications & Compliance:

Certified with CCC (China Compulsory Certificate) and Green Premium (Schneider’s eco-design standard).

Complies with EMC standards (integrated filter reduces external component needs).

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.

Schneider Lexium 32 servo drive

three phase motion servo drive

6A Schneider servo drive

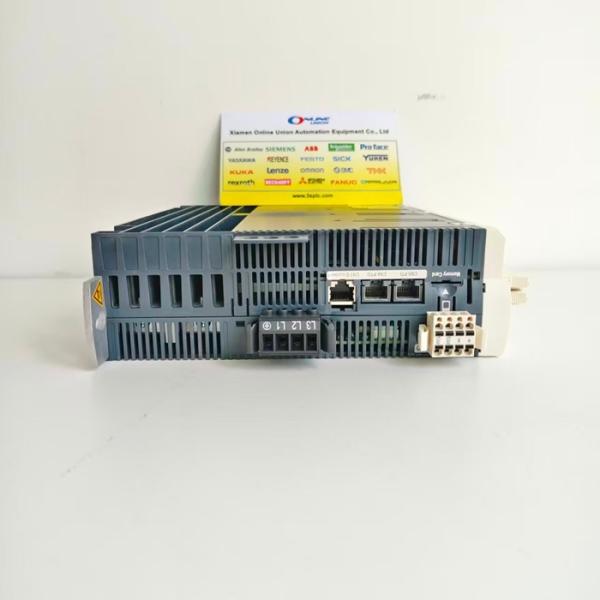

LXM32SD18N4 Schneider Motion Servo Drive, Lexium 32, 6A, Three Phase Images
